Shading

The shading ink can be used to create shadows in our sprites. We can use left and right click to move colors between a gradient (given by the selected colors in the color bar):

Shading reference

The steps to use this ink are:

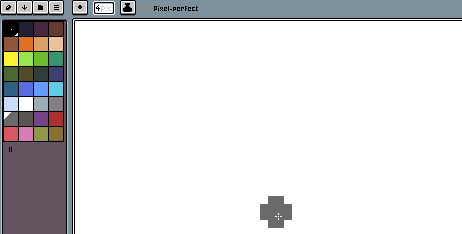

First of all we draw something to add light or shadows with a base color:

Draw base

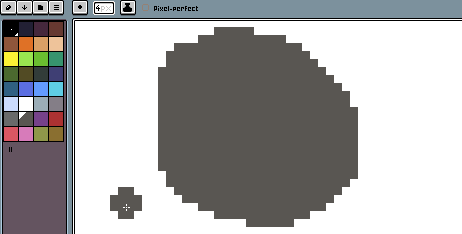

Then we select the "Shading" ink mode, and select a set of colors from the palette, including the previously selected base color. This gradient will act as shadows and light:

Select a gradient

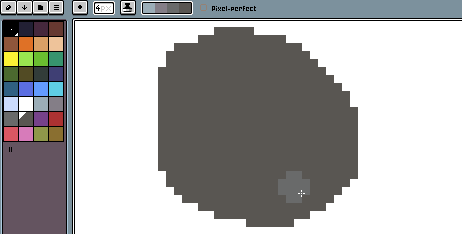

You can use left click to move colors to the left of the gradient:

Shading left click

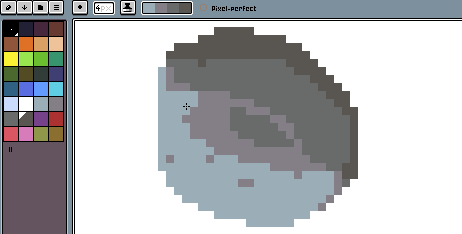

Or you can use right click to move colors to the right:

Shading right click

SEE ALSO

Drawing | Ink
